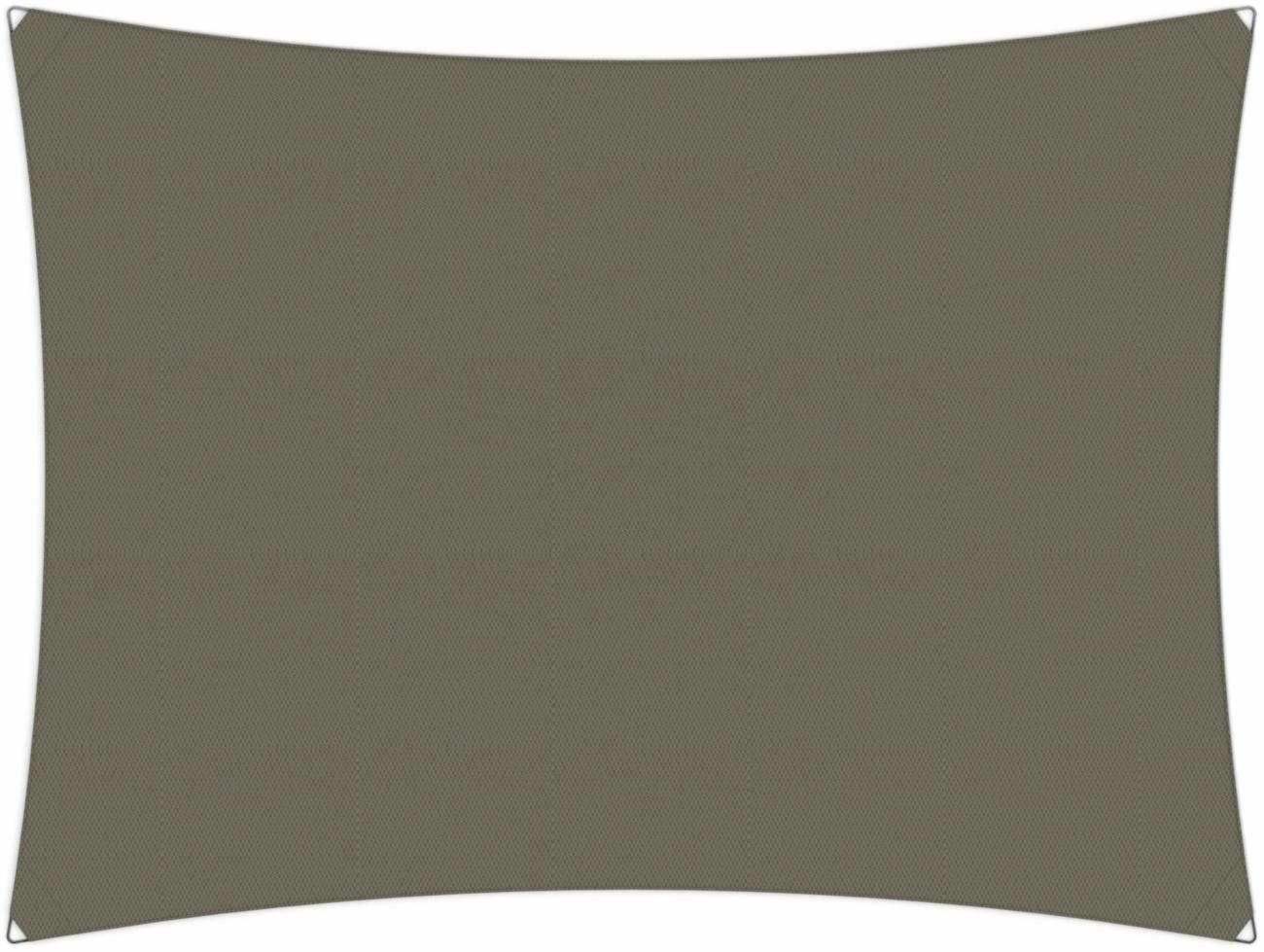

Ingenua shade sail rectangle 4 x 3 m with taupe canopy

More about our Ingenua shade sail

The Ingenua shade sails offer an easy solution for larger surfaces. Thanks to the ingenious sliding mechanism of Ingenua, you can easily adapt the sail to the circumstances and the environment. The simple lines and modern shapes of Ingenua shade sails are combined with an excellent performance in terms of wind resistance.

Shade sail, in combination with the patented sliding mechanism
Resists high wind speeds
Shade sail can be adjusted according to the position of the sun
Numerous sail combinations are possible

Every sail contains a storage bag and the necessary ropes, dog bones and carbine hook (2 m rope on each corner).

Mounting options

POLE

Ingenua pole 80°/90° for installation of maximum 2 Ingenua sails. Each pole comes with a sliding unit. ATTENTION: for 2 sails on 1 pole, always install 90°.
Dimension: 2,6 m
2 finishes available: Alu and Black
Round support straight 90° to install the pole on a hard surface (concrete - wood)
Round support inclined 80° to install the pole on a hard surface (concrete - wood)
Concrete anchorage straight 90° to install the pole on a soft surface no round support needed
Concrete anchorage inclined 80° no round support needed
Optional : Wall brackets - set of 2 brackets to install the single pole on the wall
Baseplate: easy installation for all supports (80°- 90°) - has to be mounted together with the round support - allows easy removal of the round support during winter.

WALL

Wallkit for installation on the wall - includes eye screw (with expansion bolt), wall unit, pulley and a rope of 5 m - attention: bolts included are not appropriate for all surfaces.
Wall profile - wall mount with slider: wall profile for the fixation of the sail to the wall with sliding mechanism - includes wall profile of 1,6 m - Available in Black und anodized Aluminum - attention: bolts included are not appropriate for all surfaces.

Installation Tips

Most installations happen with at least one corner fixed to the wall, using the wall profile or wallkit. Sails can be fixed to any element that is strong enough (e.g. a tree). Every sail contains a storage bag and the necessary ropes. The size and form is a matter of personal taste and size of the area that needs to be covered. The Ingenua shade sails are to be used under normal weather circumstances and have a wind rating up to 50 km/h or 31 mp/h.
When there are strong winds it is advisable to take the sails down. The sails are water-repellent and not waterproof. Follow these 3 guidelines for a successful installation:

The fixation of a corner needs to be in the direction of the line that cuts a corner in two equal parts, ensuring maximum tension.
It is recommended to install the fixations on at least 0,5 m on each side of the sail. Example: a 4 m sail has fixation points that are 5 m from each other. Exception: one corner can be fixed directly to the wall.
Make sure that you can put the sail under a 30° angle to ensure a good drainage in case of rain and to prevent water pockets.

Canopy

Canopy in Solidum or Colorum fabric - Solution dyed acrylic fabric (100%)
Colorum 260 gr/m2
Solidum 250 gr/m2
Hand wash 30°C
Water repellent
Colour rating 7/8 (max = 8)
Waranty: 3 years

Packaging & Transport

Box pole
270 cm x 10 cm x 8.5 cm | 7.3 kg
8'10.3" x 3'9" x 3.9" | 16 lbs

Bag sail
45 cm x 55 cm x 16 cm | 2.23 - 5.26 kg
1'5.7" x 1'9.7" x 6.3" | 5-11 lbs

Models

Triangle
- 4 x 4 x 4 m (13'1"x13'1"x13'1")
- 5 x 5 x 5 m (16'5"x16'5"x16'5")
- 4 x 5 x 6,4 m (13'1"x16'5"x21')
Square
- 4 x 4 m (13'1"x13'1")
Rectangle
- 3 x 4 m (9'10"x13'1")
- 3 x 5 m (9'10"x16'5")
- 4 x 5 m (9'10"x16'5")
